Hook lift work with heavy-duty truck chassis, fitted with hydraulic lift hoists. By connecting the container to the truck hook, the operator hoists the container onto the truck bed. Different from the roll-off cable hoist, the hook lift is desirable for sites to provide accuracy in dropping containers in exact positions and is suitable for maneuvering into and out of tight spaces .

Single pivot hook lift feature a universal fit for nearly any chassis. The simple design of the single-pivot hook lift means fewer moving parts and less maintenance . A dual pivot hook is designed for higher hauling capacities and ease of use with the advantage of set hook heights . The dual-pivot design allows the user to dump the loads off the back while maintaining a secure connection to the hook body throughout the lifting cycle.

In addition to the hook, the type of axle impacts the use. A single axle cable hoist is designed to transport smaller, outside-rail containers and equipment . A tandem-axle hoists two axles on a single travel trailer, one in front of the other providing more control.

Lastly, the hoist’s tail provides a range of capabilities . A rear tri-roller tail assembly enables a variety of pick-ups from industry-standard, narrow-rail, and deadlift-style containers. These hoists are ideal for areas with clearance issues that require low loading heights . Trucks with a long, extendable, overhanging tail help support and haul a broader range of container lengths.

The weight capacity for your hoist type remains vital as it determines the maximum weight you can lift safely. Traditionally, roll-off cable hoists better service heavier loads. This system pulls the weight up the rails with control over the incline of the rails as the load is being lifted, resulting in reduced tension on the cable. Roll-off cable hoists are typically better suited for heavier loads , with most products capable of lifting 22- to 24-foot containers with a load capacity of up to 80,000 pounds .

On the other hand, a hook lift offers more flexibility for container types, resulting in a better range of container size and cost reduction for the fleet. Hook lifts are preferable for smaller containers and load sizes , ranging from 6 feet to 24 feet and 9,000 to 60,000 pounds .

Each state has its governance surrounding the use or non-use of auxiliary lift axles on trucks and trailers. Many states implement strict guidelines and unique regional requirements that have led to the design of specialty products. Working with a trusted source like Galbreath—backed by the industry’s largest and most experienced dealer network with more than 50 distributors and many with multiple locations—gives peace of mind to customers that the product they select aligns with all requirements.

Galbreath’s full line of hoists meets most regionally specific needs and applications, and remain the standard for the waste industry. With legendary durability and service life, these hoists will outlast most chassis.

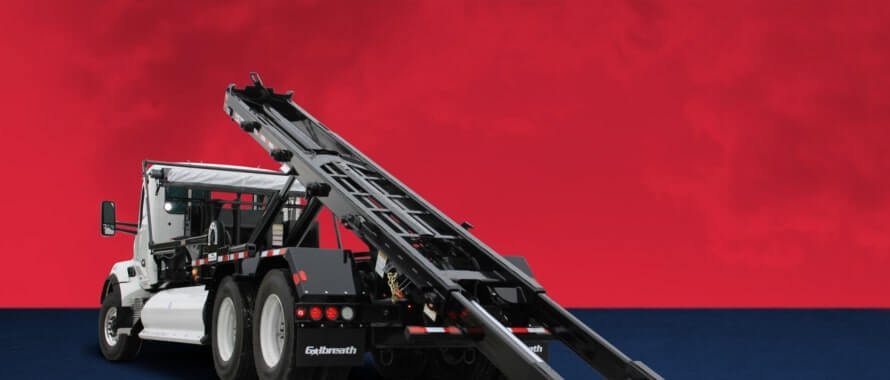

Galbreath is also North America’s leading hook lift manufacturer. Hook lifts offer greater versatility and maneuverability than traditional roll-off cable hoists. With easier in-cab operation, swift cycle times, and up to a 62-degree dump angle for clean discharge , our hook lifts are an excellent choice for hauling shorter containers.
